Preface#

1Panel is the server management panel I am currently using. Its community edition is open-source and free, with a simple and fast overall panel design that does not require login. In terms of basic experience, it seems to be stronger than the neighboring Baota.

However, it is not favored by many beginners and some users because its applications are deployed through Docker containerization.

The downside of using Docker for deployment is that the overall memory usage of the application may be slightly higher, and configuring container networking is a deterrent for many beginners. If configured poorly, the application may not connect to the database, and the website may not reverse proxy correctly, among other issues.

However, there are also many benefits to Docker containerized deployment. For example, the absence of a build step allows the application to start immediately after pulling the image, similar to binary application files, without having to wait long or requiring much server performance for building. This is particularly evident when deploying Node.js applications. Moreover, the configuration files are simple; you only need to understand the Docker Compose configuration file format to get started, making the overall experience very good for large-scale deployments.

Of course, 1Panel is aware that beginners may not understand Docker, so it also has an application store, which contains pre-written Docker Compose file templates. By clicking install, you can deploy with one click, and it automatically sets up the network for you. Additionally, you can design your own applications and upload them to the server for one-click installation. This has led to the creation of the official 1Panel application store and third-party application store repositories, allowing you to pull repositories to the server and enjoy a wealth of applications.

In fact, the structure of 1Panel applications is very simple; you only need a few files to design the application you want to deploy. Today, I will briefly explain how to design this application.

Note#

It is worth noting that the essence of the 1Panel application store is actually a graphical representation of individual Docker Compose orchestration files, so your application needs to have publicly accessible Docker images to function properly.

Format#

Initialize Template#

Starting from 1panel 1.3 and above, you can quickly initialize application template files on a server with 1Panel installed using the command 1panel app init <application key> <application version> (note that it is not the 1pctl command).

Folder Format#

The folder format for the application roughly looks like this:

├──halo // Folder containing the application, using halo as an example
	├── logo.png // Application logo
	├── data.yml // Application declaration file
	├── README.md // Application README file
	├── 2.2.0 // Application version, do not start with v
	│   ├── data.yml // Application parameter configuration, detailed introduction below
	│   ├── data // Mounted directory
	|   ├── scripts // Script directory storing init.sh upgrade.sh uninstall.sh
	│   └── docker-compose.yml // Docker Compose file
	└── 2.3.2
	    ├── data.yml
	    ├── data
	    └── docker-compose.yml

Application Logo#

Used for display on the application overview and application detail pages, the application logo should be in PNG format, preferably with an aspect ratio of 180 * 180 px. Place it in the root directory of the application, for example, /halo/logo.png. Do not use formats such as webp, jpg, or svg.

Application Declaration File#

Declare the basic information of your application so that 1Panel knows some basic information about your application, such as its name and purpose. This is located in the data.yml file in the root directory of the application, and the format is roughly as follows:

# It is recommended to fill out the section below, although the official Wiki of 1Panel's application store does not state its purpose
name: Halo
tags:
  - Website
title: Powerful and easy-to-use open source website builder
type: Website
description: Powerful and easy-to-use open source website builder
# The section below is for application declaration information, please fill it out correctly!
additionalProperties:  # Fixed parameters
    key: halo   # Application key, limited to English, used to create folders in Linux
    name: Halo  # Application name
    tags:
        - WebSite # Application tags, can have multiple, please refer to the tag list
    shortDescZh: 强大易用的开源建站工具 # Application Chinese description, no more than 30 characters
    shortDescEn: Powerful and easy-to-use open source website builder # Application English description
    type: website  # Application type, distinct from application classification, can only have one, please refer to the type list below
    crossVersionUpdate: true  # Whether cross-major version upgrades are allowed
    limit: 0  # Application installation quantity limit, 0 means unlimited
    website: https://halo.run/  # Application official website address
    github: https://github.com/halo-dev/halo # Application GitHub repository address
    document: https://docs.halo.run/ # Application documentation address

We will provide a detailed introduction to the required application declaration information from top to bottom:

key#

A name like halo, which is actually the name of your application folder. Be sure to keep it consistent with the application folder name; otherwise, the application may not deploy or install correctly.

name#

The name of the application, used for display in the 1Panel store list and above the application details, filling it out can improve the application's recognizability.

tags#

Application tags determine the category of the application in the application store and can have multiple entries.

The tag list and their corresponding categories are as follows:

shortDescZh/En#

Application's Chinese/English description, used for a quick introduction of the application in the application store list and above the application detail page. It should not be too long (no more than 30 characters in Chinese).

type#

The application usage classification, which mainly determines how 1Panel will treat your application. For example, website type applications can be reverse proxied and assigned domain names with one click in its website functionality.

crossVersionUpdate#

Determines whether the application can be upgraded across major versions; generally, it can.

limit#

Determines how many instances of this application can be deployed, generally 0 for unlimited, but some applications cannot be installed multiple times, such as reverse proxy services like Openresty.

website#

The official website address of the application, but not all applications have an official website. If there is none, fill in the application's GitHub repository address, which essentially serves as a contact address.

github#

The GitHub repository address of the application. Essentially, applications submitted to the 1Panel application store are open-source applications, so they generally have such an open-source address. You can customize it locally as needed.

document#

The documentation address for the application, fill it out as needed; not all applications have comprehensive documentation.

Application Parameter Configuration File#

This is also data.yml, but it is located in the version number directory of the application. Be careful not to confuse it with the application declaration file.

This file is mainly used to generate the form to be filled out during installation. In the application version folder, there can be no form, but this data.yml file is required and must contain the formFields field.
@1Panel Application Store Repository Official Wiki

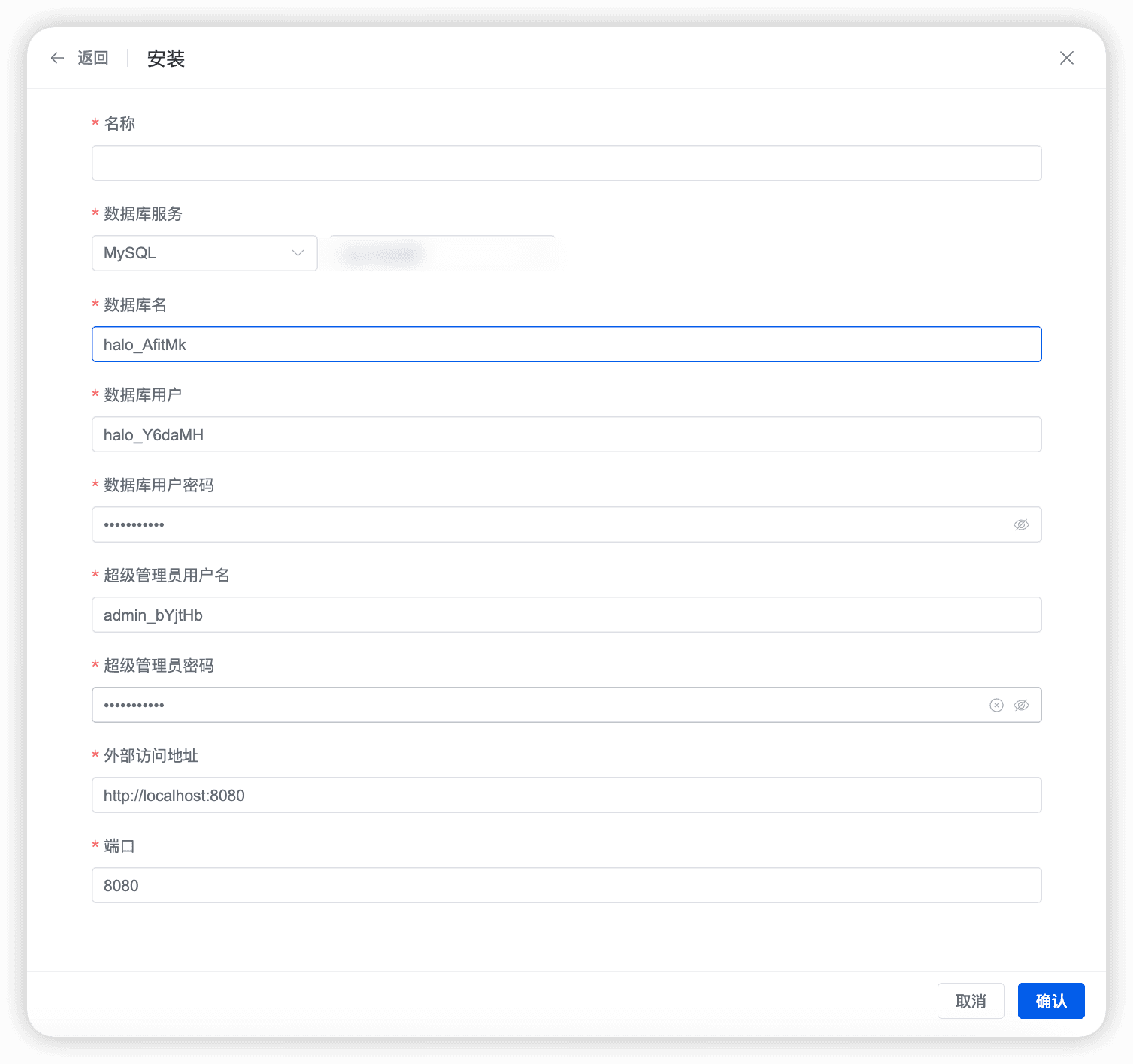

Taking Halo's form as an example:

To generate a form like the one above, you need to fill out the application parameter configuration file as follows (from the official Wiki example):

additionalProperties:  # Fixed parameters
    formFields:
        - default: ""
          envKey: PANEL_DB_HOST  # Parameter in the docker-compose file
          key: mysql  # Dependent application's key, e.g., mysql
		  labelEn: Database Service  # English label
		  labelZh: 数据库服务  # Chinese label
		  required: true  # Whether it is required
          type: service  # Use this type if it depends on other applications, such as a database
        - default: halo
          envKey: PANEL_DB_NAME
          labelEn: Database
          labelZh: 数据库名
          random: true  # Whether to add a random string after the default text
          required: true
          rule: paramCommon  # Validation rule
          type: text  # Use this type for manual input
        - default: halo
          envKey: PANEL_DB_USER
          labelEn: User
          labelZh: 数据库用户
          random: true
          required: true
          rule: paramCommon
          type: text
        - default: halo
          envKey: PANEL_DB_USER_PASSWORD
          labelEn: Password
          labelZh: 数据库用户密码
          random: true
          required: true
          rule: paramComplexity
          type: password  # Use this type for password fields
        - default: admin
          envKey: HALO_ADMIN
          labelEn: Admin Username
          labelZh: 超级管理员用户名
          required: true
          rule: paramCommon
          type: text
        - default: halo
          envKey: HALO_ADMIN_PASSWORD
          labelEn: Admin Password
          labelZh: 超级管理员密码
          random: true
          required: true
          rule: paramComplexity
          type: password
        - default: http://localhost:8080
          edit: true
          envKey: HALO_EXTERNAL_URL
          labelEn: External URL
          labelZh: 外部访问地址
          required: true
          rule: paramExtUrl
          type: text
        - default: 8080
          edit: true
          envKey: PANEL_APP_PORT_HTTP
          labelEn: Port
          labelZh: 端口
          required: true
          rule: paramPort
          type: number # Use this type for ports

Is it a bit overwhelming? Let's break down and explain this:

		- default: ""
		  envKey: PANEL_DB_HOST  # Parameter in the docker-compose file
          key: mysql  # Dependent application's key, e.g., mysql
		  labelEn: Database Service  # English label
		  labelZh: 数据库服务  # Chinese label
		  required: true  # Whether it is required
          type: service  # Use this type if it depends on other applications, such as a database

default#

The default format for the variable value of the application. Whatever you set as the default variable for the application will be filled in by default. For example, if you want to set the default frontend site of this application to example.com, you would fill it in here, and the application will default to using example.com as the frontend site value.

envKey#

Corresponds to the environment variable settings in your application's compose orchestration file, such as the values under environment. Simply put, it passes a variable value to the file. For example, the HOST variable can be referenced in the compose file using ${HOST}, which is not difficult to understand.

For example, in the following Halo example:

services:
  halo:
    image: halohub/halo:2.2.0
    container_name: ${CONTAINER_NAME}
    restart: always
    networks:
      - 1panel-network
    volumes:
      - ./data:/root/.halo2
    ports:
      - ${PANEL_APP_PORT_HTTP}:8090
    command:
      - --spring.r2dbc.url=r2dbc:pool:${HALO_PLATFORM}://${PANEL_DB_HOST}:${HALO_DB_PORT}/${PANEL_DB_NAME}
      - --spring.r2dbc.username=${PANEL_DB_USER}
      - --spring.r2dbc.password=${PANEL_DB_USER_PASSWORD}
      - --spring.sql.init.platform=${HALO_PLATFORM}
      - --halo.external-url=${HALO_EXTERNAL_URL}
      - --halo.security.initializer.superadminusername=${HALO_ADMIN}
      - --halo.security.initializer.superadminpassword=${HALO_ADMIN_PASSWORD}
    labels:
      createdBy: "Apps"

networks:
  1panel-network:
    external: true

key#

Although this appears in the official Wiki example of 1Panel, it seems that they have already deprecated this format. Some applications may depend on other services, such as Halo depending on a MySQL database. In this case, you would fill it in here to reference it. The example provided by 1Panel is a bit outdated; we can use the following format to achieve referencing an external database:

        - child:
            default: ""
            envKey: PANEL_DB_HOST
            required: true
            type: service
          default: mysql
          envKey: PANEL_DB_TYPE
          labelEn: Database Service
          labelZh: 数据库服务
          required: true
          type: apps
          values:
            - label: MySQL
              value: mysql
            - label: MariaDB
              value: mariadb

This way, you can choose how to connect your application to the database. However, I don't fully understand this, so copying and pasting from other applications that have successfully integrated external databases seems like a good approach.

labelEn/Zh#

I feel that this does not need much introduction, as it has been clearly stated above, which is the Chinese and English description of the application.

required#

Determines whether this variable value is required. If it is true, not filling it out will prevent further installation. You can decide this based on the situation.

type#

It may seem clear in the table, but it can be quite a headache to write. You can look it up in the table; I also find this quite challenging. Essentially, its setting determines what type of value can be filled in for this application setting variable.

Refer to the examples provided below for understanding:

# type: service, defining a mysql service dependency.
- default: ""
    envKey: DB_HOST
    key: mysql
    labelEn: Database Service
    labelZh: 数据库服务
    required: true
    type: service

# type: password
- default: Np2qgqtiUayA857GpuVI0Wtg
    edit: true
    envKey: DB_PASSWORD
    labelEn: Database password
    labelZh: 数据库密码
    required: true
    type: password

# type: text
- default: 192.168.100.100
    disabled: true.
    envKey: REDIS_HOST
    labelEn: Redis host
    labelZh: Redis 主机
    type: text

# type: number
- default: 3306
    disabled: true
    envKey: DB_PORT
    labelEn: Database port
    labelZh: 数据库端口
    rule: paramPort
    type: number

# type: select
- default: "ERROR"
    envKey: LOG_LEVEL
    labelEn: Log level
    labelZh: 日志级别
    required: true
    type: select
    values:
        - label: DEBUG
          value: "DEBUG"
        - label: INFO
          value: "INFO"
        - label: WARNING
          value: "WARNING"
        - label: ERROR
          value: "ERROR"
        - label: CRITICAL
          value: "CRITICAL"

rule#

Some of the above examples have appeared, mainly to validate whether the user has written this correctly. For example, to prevent some users from entering domain names in the port setting, this rule will enforce that this field must be filled in a specific format.

Application Compose File#

Located in the version number directory of the application, the docker-compose.yml file has format requirements. Below is an example.

Example File#

services:
  ghost:
    container_name: ${CONTAINER_NAME}
    restart: always
    networks:
      - 1panel-network
    ports:
      - "${PANEL_APP_PORT_HTTP}:2368"
    volumes:
      - ./data:/var/lib/ghost/content
    environment:
      - database__client=${PANEL_DB_TYPE}
      - database__connection__host=${PANEL_DB_HOST}
      - database__connection__user=${PANEL_DB_USER}
      - database__connection__password=${PANEL_DB_USER_PASSWORD}
      - database__connection__database=${PANEL_DB_NAME}
      - database__connection__port=${PANEL_DB_PORT}
      - url=${GHOST_EXTERNAL_URL}
    image: ghost:5.96.2
    labels:
      createdBy: "Apps"

networks:
  1panel-network:
    external: true

Requirements#

• The header should not have the version variable; remember to delete it.
• You must define the container_name setting for the application, and it must be ${CONTAINER_NAME} so that 1Panel can configure it correctly during installation.
• The application network must be configured as 1panel-network, so that applications can communicate with each other normally. I have noticed that some third-party application store repositories do not pay much attention to this, but it can be considered based on the situation. However, it is recommended to keep everything under the official 1Panel network.
• The port ports setting must also be in the default format ${PANEL_APP_PORT_HTTP}:8090, so that 1Panel can correctly set the application's open port.
• The end of the file must also include the networks configuration, just copy it from the example file.
• The image tag of the application must match the version number indicated in the folder. For example, if the version number folder is 5.96.2, then the image tag inside the file must also be written as such; otherwise, it will affect application detection and installation updates!
• Remember to fill in the labels tag above, just copy it over; of course, this is not a required item, just a norm.
• Remember to define the restart settings for the application, such as always, etc., to ensure that the application can recover when encountering issues (fog).

Scripts#

Introduction#

1Panel supports executing .sh scripts before installation, before upgrades, and after uninstallation, corresponding to init.sh, upgrade.sh, and uninstall.sh.
Storage directory (using halo as an example): halo/2.2.0/scripts

Local Testing#

I highly recommend testing on your own server with 1Panel installed before releasing to ensure it can be installed correctly.

Upload the application directory to the 1Panel's /opt/1panel/resource/apps/local folder.
Note: /opt is the default installation directory for 1Panel; please modify it according to your actual situation.
After uploading, the directory structure should look like this:

├──halo
	├── logo.png
	├── data.yml
	├── README.md
	├── 2.2.0
	    ├── data.yml
	    ├── data
	    └── docker-compose.yml

In the 1Panel application store, click the update application list button to sync local applications.

Conclusion#

After testing successfully, you can submit it to the official repository or third-party application store repository, or use it yourself. However, I still recommend that you share it by submitting it to the official or other third-party application store repositories.

The official requirements and rejection rates are relatively high. Generally, submitting to third-party repositories is also quite good. Here are some known repositories:

• AuroraStarTeam/1panel-app-store, maintained by my personal organization Aurora Star, with the philosophy of being clean and tidy, but personal experience may not be rich enough.
• okxlin/appstore, a popular and early third-party store repository with many applications, but also quite chaotic.

Reference Documents:#

• How to Submit Your Desired Application (1Panel Official Application Store Repository Wiki)
